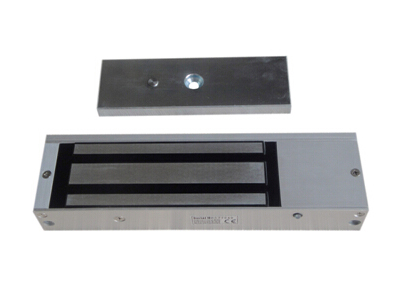

OGL-500（Without light）
OGL-500S（With light）
OGL-500ST（With light and time delay）
Dimension of lock body: length 266mm * width 73mm * height 41mm
Size of iron block: length 186mm * width 62mm * height 15mm
Voltage (optional in lock): DC12V or DC24V
Consumption current: 520MA / DC12V, 260ma / DC24V
Product performance: red and green LED dual color gate status indication
No, NC gate state detection output
